15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox

Anhui High Precision Gear Transmission Co., Ltd
Contact Now
    Buy cheap 15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox from wholesalers

    Buy cheap 15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox from wholesalers
    • Buy cheap 15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox from wholesalers
    • Buy cheap 15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox from wholesalers
    • Buy cheap 15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox from wholesalers
    • Buy cheap 15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox from wholesalers

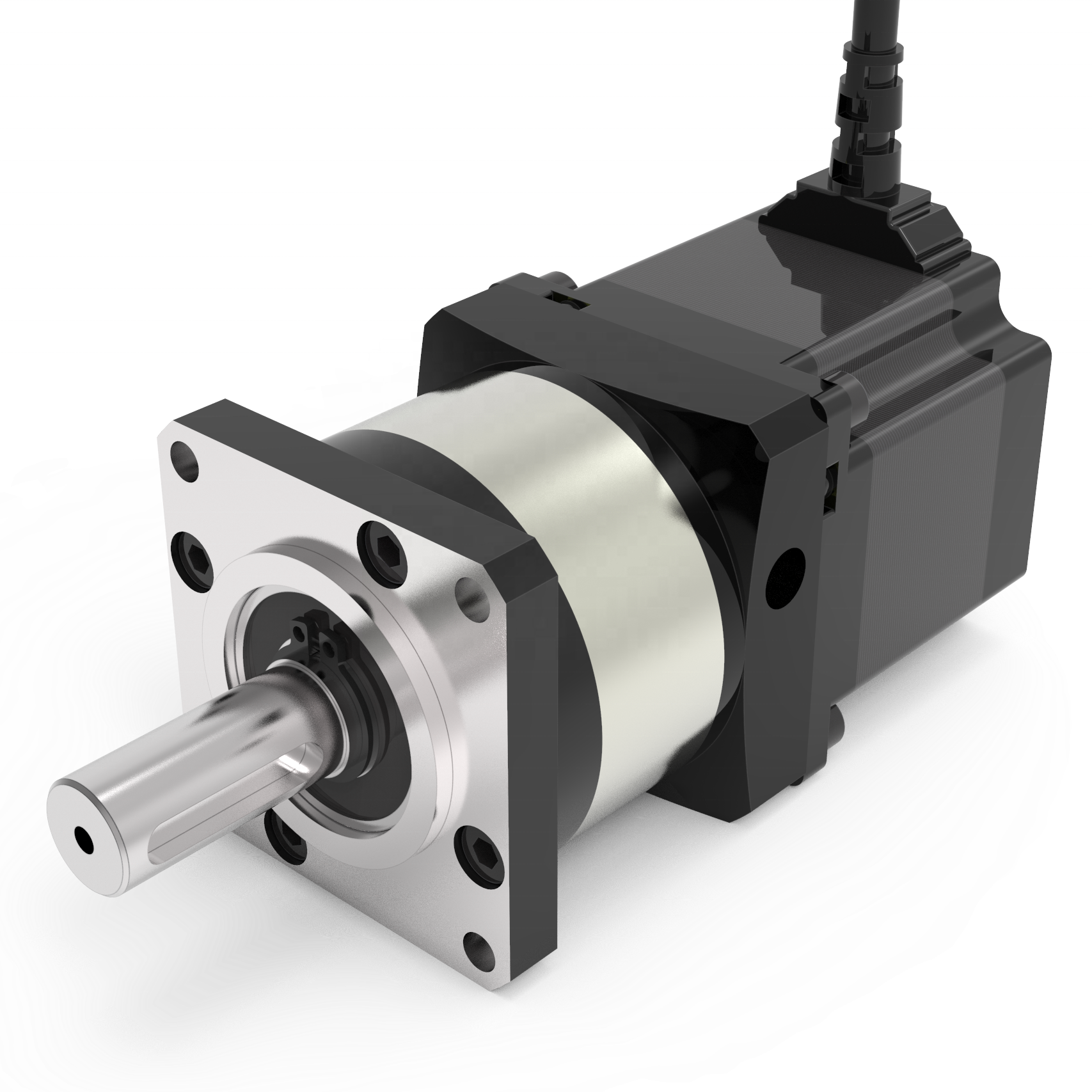

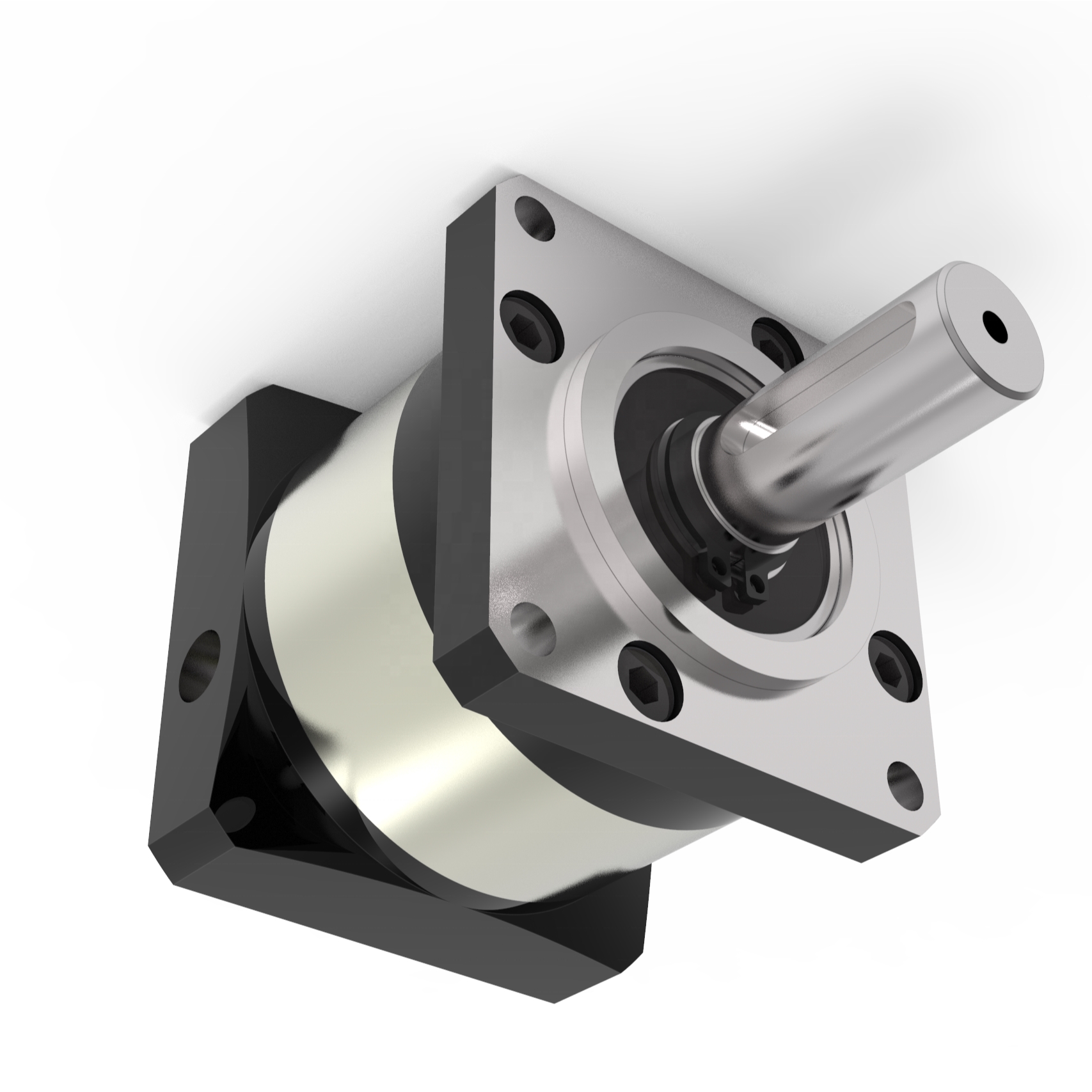

    15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox

    Ask Lasest Price
    Brand Name : HPS
    Model Number : PLF57
    Certification : CE / ISO9001
    Price : 30$-25$
    Payment Terms : L/C, T/T
    Supply Ability : 500000 sets per year
    Delivery Time : Depends on order quantity
    • Product Details
    • Company Profile

    15 Arcmin Small Prcision Planetary Gearbox 57mm Transmission Gearbox

    Arcmin ≤15 Small Planetary Gearbox 57mm Transmission Gearbox

    Why Choose Us

    We're the manufacturer of high precision planetary gearbox for automation industry in China. We promise the quality, lifespan, shipment time and service will be satisfy you.


    PLF57 Planetary Gearbox is one of precision gearboxes. The ratio can be selected by yourself for reaching your demands. It can adapt with DC brushless servo motor and DC brushless stepper motor.


    Competitive & Advantages of Planetary Gearbox


    • ODM & OEM Service

    • Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test

    • Low Noise, Low Backlash, High Efficiency

    • 20000 Hours Working Life

    • 100% Quality Checked with Quality Guaranteed


    Applicable Industry

    Manufacturing Plant,

    Machinery Repair Shops,

    Automation Industry

    Manufacturer TypeOEM/ ODM
    Gearing ArrangementPlanetaryLubricating oil TypeSynthetic Grease
    Output Torque(N.m)≤12Output Speed (rpm)0.5-30
    Input Speed (rpm)≤3000Ratio

    4,5,7,10

    16,20,25,28,35,40,50,70

    LocationChinaBrandHPS
    Housing Texture45#Steel or 42CrmoMaterial of shaftAs required
    CertificationsISO-9001 / CEModelPLF57
    PackageStandard Export PackageWarranty1 Year

    Planetary Gearbox Specifications



    ModelPLF57
    Drive series1/2
    Ratio

    4,5,7,10

    16,20,25,28,35,40,50,70

    Rated output torque(N.m)12
    Max torque(N.m)15
    Noise (db)≤55
    Working temperature(℃)-10~90
    IP Level54
    Full Load Efficiency90%

    Planetary Gearbox Classification & Application Fields


    Successful Field



    Exhibition


    HPS attends 5-6 exhibitions every year, both solar PV exhibitions and automation industry exhibitions, professional sales team and quality products build HPS a good reputation in the market.


    Packaging



    Certifications


    We have obtained many certificates in terms of quality and invention patents, and only a part of them are shown here.

    These certificates are sufficient to prove that the quality of our products is reliable, and we look forward to cooperating with you.


    FAQ

    1. Are you manufacturer?

    Yes, we are the manufacturer in China.


    2. What information shall we give before placing a purchase order?

    A) Motor specifications, ratio, output speed, output rated torque, backlash and noise requirements, connection type.

    B) Purchase quantity

    C) Other particular requirements


    3. What applications are your gearboxes being used?

    Our gearboxes widely used in the applications of solar energy, AGV, robot arms, textile, food processing, chemical industry, automation production line, environment protection, logistics and etc.


    4. Would you customize for special requirements?

    Yes, we have design and development team with over 10 years experience in this field.


    5. Can I come to your company to visit?

    Yes, you can come to our company to visit at anytime
