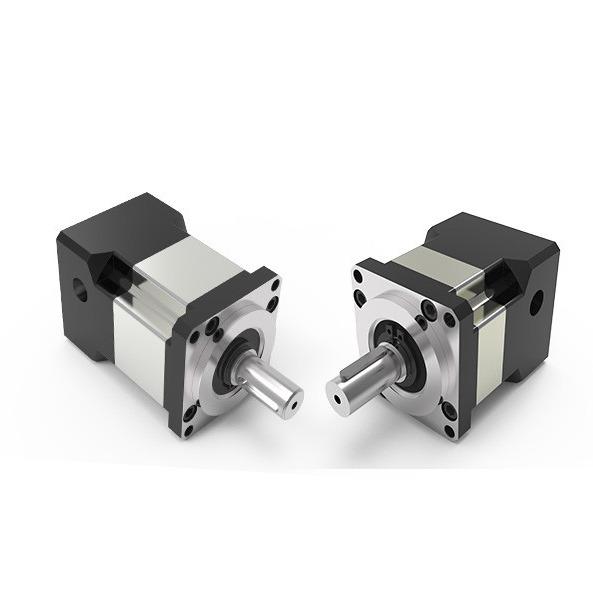

High Efficiency 96% 42mm Precision Planetary Gearbox With 54 Protection Level

High Efficiency 96% First stage 42 series Planetary Gearbox with 54 Protection Level

PS42 series is a customized series, there is no standard product. In the entire automation market, the demand for this series is currently not very sufficient, so as a manufacturer we need to customize it according to the specific needs of customers.
If you need to customize, please provide the speed, torque, speed ratio, installation size, protection level, noise and other parameters.

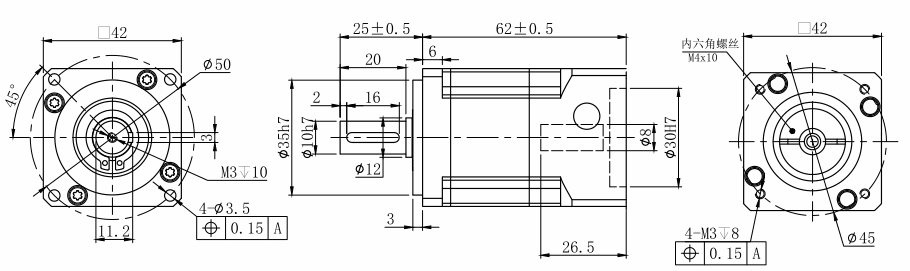

PS42-L1 Stepper Planetary Gearbox Parameters

PS42-L1

PS42-L2

Product Description

The planetary gearbox is generally used for low-speed and high-torque transmission equipment. The motor, internal combustion engine or other high-speed running power is used to achieve the purpose of deceleration by meshing with the large gear on the output shaft through a gear with a small number of teeth on the input shaft of the reducer. The reducer will also have several pairs of gears with the same principle to achieve the ideal reduction effect. The ratio of the number of teeth of the large and small gears is the transmission ratio.

Production Range

​60 Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 60mm Input Flange
Gear Arrangement: Planetary Straight Teeth

90 Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 90mm Input Flange
Gear Arrangement: Planetary Straight Teeth

Powder Metal Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 42mm & 57mm
Gear Arrangement: Planetary Straight Teeth

Right Angle Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 60mm & 90mm
Gear Arrangement: Planetary Straight Teeth

Solar Gear Motor
Output Torque: 60 - 660 N.m
IP: 65
Customized Service: OEM, ODM.
Application: Solar Tracker System / Solar Panels Cleaning Robot / Other Industry Machine

NEMA Stepper Motor
Motor Type: NEMA 8 -- NEMA 42
Step Accuracy: 5%
Adapted Gearbox Diameter(mm): 20, 28,35,39,42,57,60,86,110
Ambient Temperature Range: -20°C ~ +50°C

Application Field

Automatic Arms

Assembly Line

3D-Printer

Medical -Equipment

CNC Machine

Tapping Machine

Other Automation Devices

Company Profile

Anhui High Precision Gear Transmission Co., Ltd located in Chuzhou city, Anhui Province, China. It is a leading company dedicated in precision

transmission parts and system research, manufacture and sales, various series of products are manufactured in its 5000 square meters workshop, the precision planetary gearbox and gear motor are developed especially for solar energy industry and have served many large-scale solar projects worldwidely.

Team

Certifications

Logistics

Packaging

FAQ

Q: Which areas are your products mainly used in?

Anhui High Precision Gear Transmission Co., Ltd located in Hefei city of China, it is a fast-growing manufacturer dedicated in precision transmission parts and system research, manufacture and sales, various series of products are manufactured in its 5000㎡ workshop, the planetary gearbox and gear motor are developed especially for solar energy industry and have served many large-scale solar utilities worldwidely.

Our research team has more than 15 years experiences in this field, who can ensure a punctual and efficient service to meet customer’s specific needs. It has pasted the ISO9001 quality management system and CE, products have been exported to lots of countries with a wide range application in solar energy,AGV, intelligent robot, logistic, industrial automation, packaging and textile etc.

Consistently, our goal is to promote the application of solar power industry in the world, and we believe it provides clean and sustainable energy for humanity to better protect our environment.
